Description
Brand: Envistia
• Converts a 12V input voltage (will operate with any input voltage from 8V to 23V) to 5V DC output at up to 3A
• Flying lead (wire) inputs and outputs for easy connection to your circuit.
• Up to 15W output power (5V at 3A)
• Fully sealed and waterproof (IP68 Rating)
• Overload / over-current / over / low voltage protection, stable performance
• Excellent for converting from a car's 12V battery to 5V

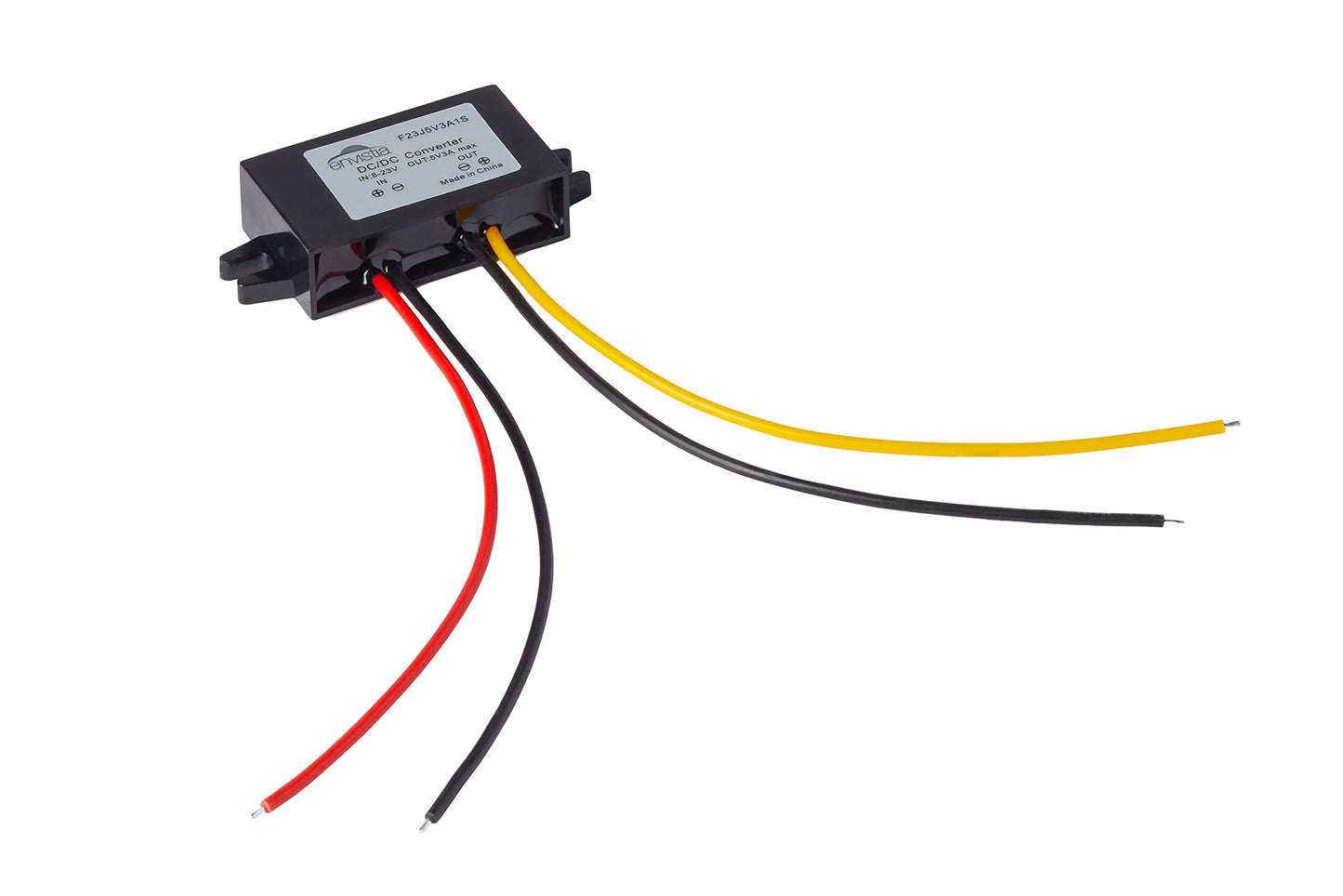

• Red and black leads are +V and -V DC inputs, yellow and black leads are +V and -V DC outputs
Color: Black

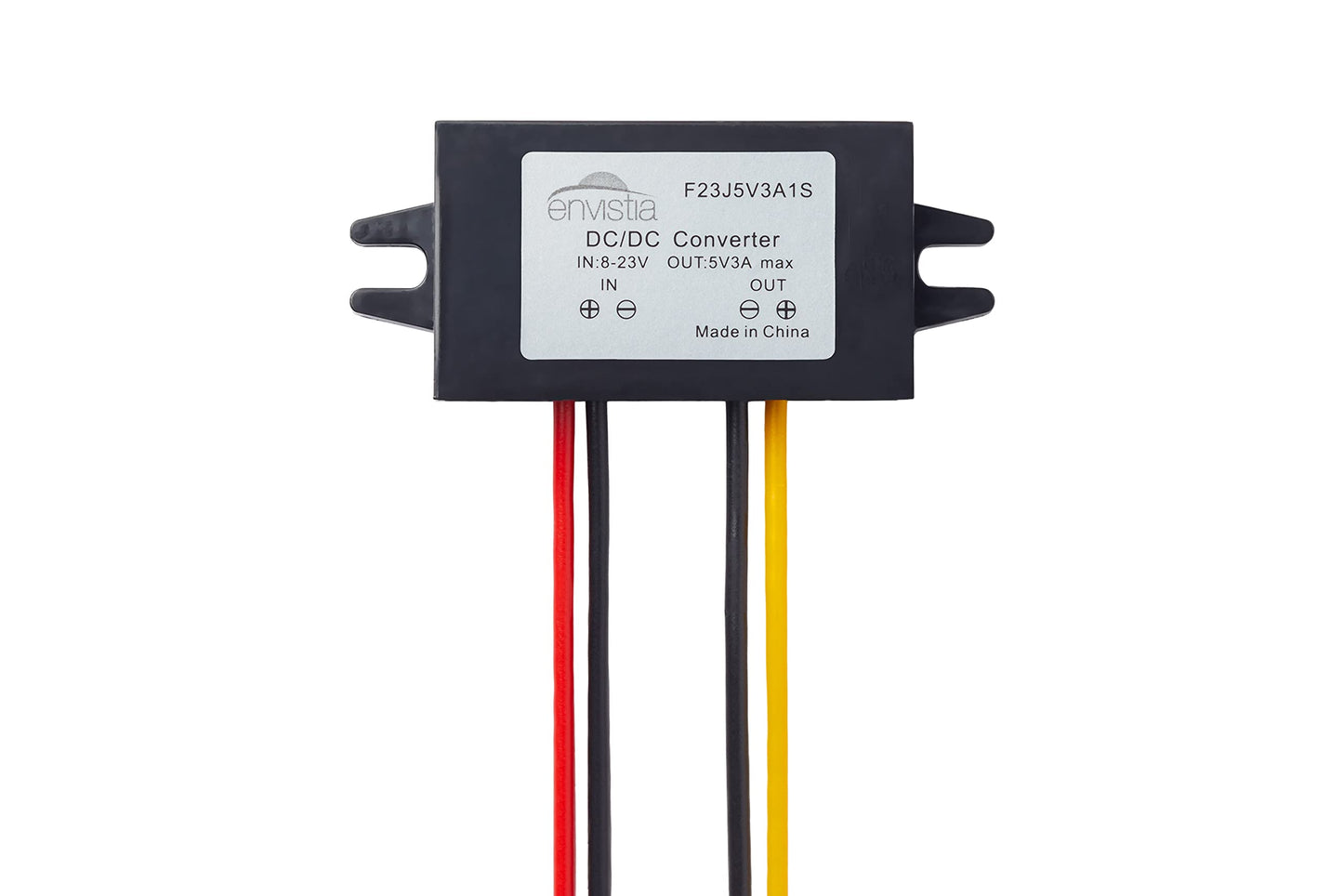

This miniature DC-DC step-down converter module converts an 8V to 23V (nominally 12V) DC input to 5V DC output at up to 3A current (15W maximum). It features flying lead inputs and outputs for easy connection to your circuit.
Specifications:
- Epoxy sealed waterproof housing (IP68)
- Lightweight, compact, convenient to use and transport
- Non-isolated
- With overload / over-current / over / low voltage protection, stable performance
- Auto recovery
- Input voltage: DC 12V nominal, will operate on any input voltage from 8V to 23V DC
- Maximum input current at 3A output: Approximately 1.25A at 12V input, 1A at 15V input
- Output voltage: 5V
- Maximum output current: 3A
- Maximum Output Power: 15W
- Efficiency: 85-90% typical, 95% max
- Voltage regulation: ±1%
- Load regulation: ± 2%
- Ripple (Full load test): < 150mV
- No-load current: < 100mA
- Operating temperature: -25C - +60C

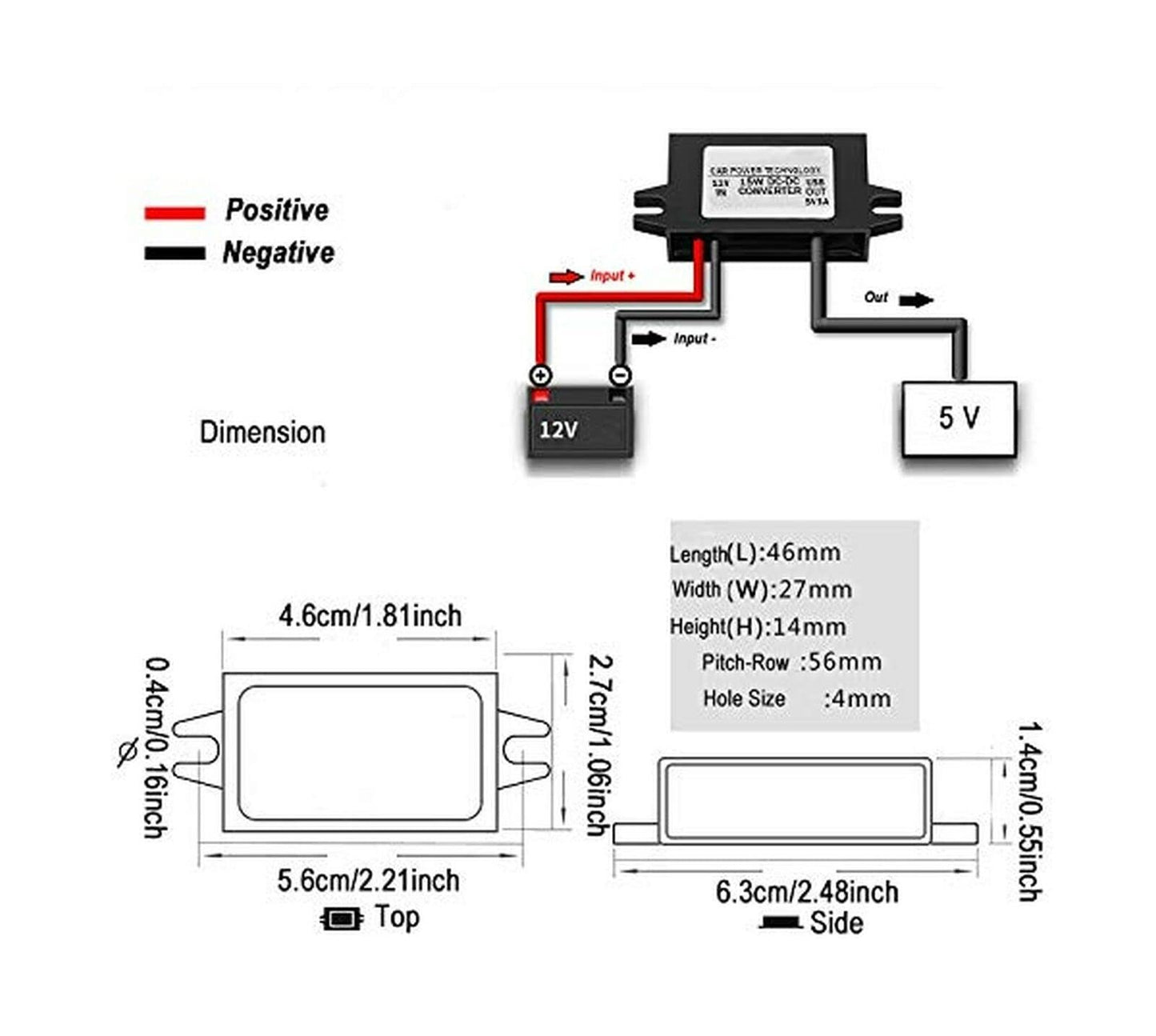

- Size (L x W x H): 46 * 27 * 14 mm / 1.81" x 1.04" x 0.55" (Length including mounting tabs is 64mm / 2.5")
- Weight: 36g / 1.3oz
- Case color: Black
- Waterproof rating: IP68
- Input and output wire lengths: 13.5cm / 5.3" (approx)
• Converts a 12V input voltage (will operate with any input voltage from 8V to 23V) to 5V DC output at up to 3A
• Flying lead (wire) inputs and outputs for easy connection to your circuit.
• Up to 15W output power (5V at 3A)
• Fully sealed and waterproof (IP68 Rating)
• Overload / over-current / over / low voltage protection, stable performance
• Excellent for converting from a car's 12V battery to 5V
• Red and black leads are +V and -V DC inputs, yellow and black leads are +V and -V DC outputs
Color: Black
